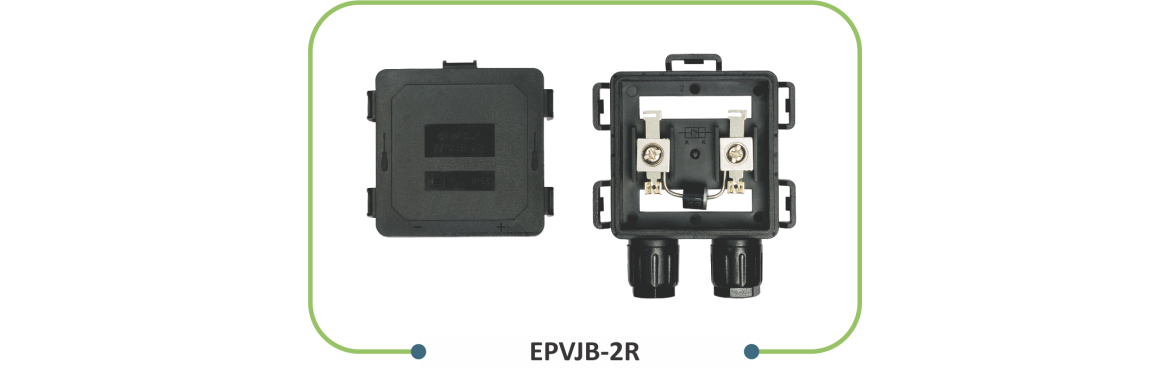

elmex PV Solar - 2 Rail Junction Box EPVJB-2R is suitable for Solar Street Light Low Wattage (less than 150W) Panels. It is designed with snap fit locking arrangement, available with 2 - in 1 - out cable connection and with 6A / 10A diode.
|
Description |
Specifications |
|
Rated Voltage |
1000V DC |
|
Rated Current |
6A / 10A |
|
Contact Material |
Copper Alloy with Nickel and Tin Plating |
|
Degree of Protection |
IP 65 |
|
Ambient Temperature |
-40° C to +85° C |
|
Application |
50W to 150W |
|
Locking System |
Snap Fit |
|
Diode Rating |
6A / 10A |
