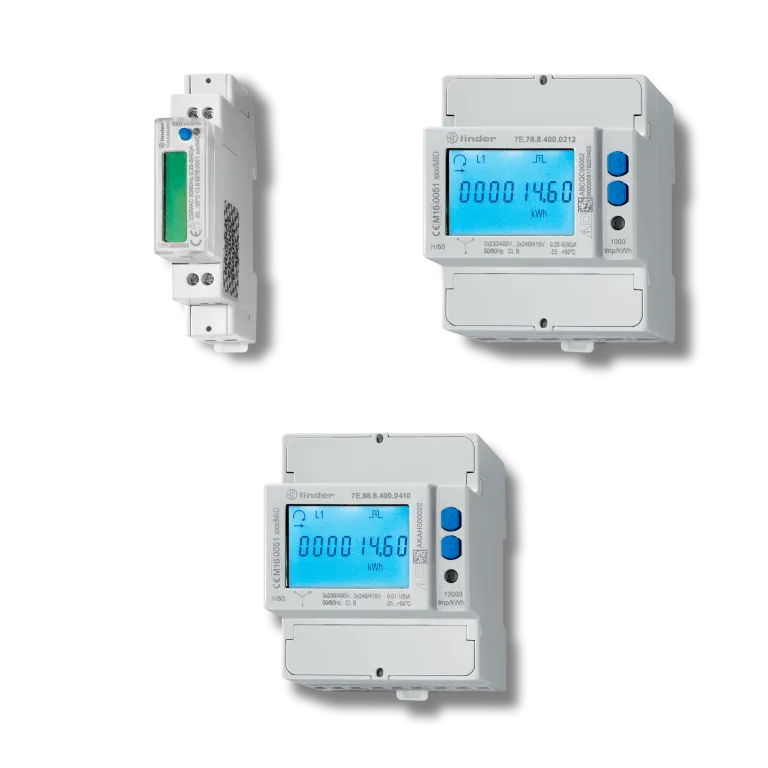

The Finder 7E Series is a range of single-phase and three-phase energy meters with mechanical or LCD backlit displays.

Other features include (according to Type):

• 1 or 3 phase
• Single or Dual tariff
• Pulse output for remote energy management; SO interface (open collector) according DIN 43864
• LC-Display or Mechanical Display
• 35mm rail (EN 60715) mount

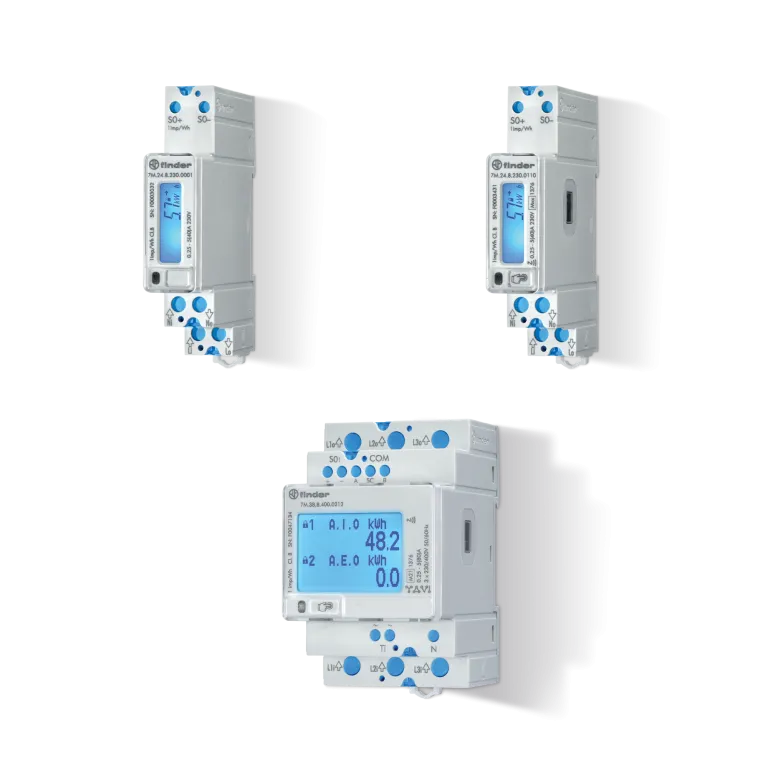

The 7M Series of energy meters are characterized by an innovative design, a backlit LCD display and NFC programmability through the dedicated Finder Toolbox NFC app.

The new range of 7M Series energy meters comprises:

• Five bi-directional single-phase energy meters with LCD display -Types 7M.24.0001/0010/0210/0310. Ideal for monitoring domestic and industrial energy consumption including offices, photovoltaic systems, campsites and similar.
• Three bi-directional multi-functional energy meters with backlit matrix display – Types 7M.38.0112/0212/0312. MID certified at 80 A, 70 °C for three-phase (3 or 4-wire) and single-phase systems.

Other common features such as tamperproof terminal shields, touch-sensitive navigation and programming key and MID certification means all the range is safe, reliable and highly accurate.

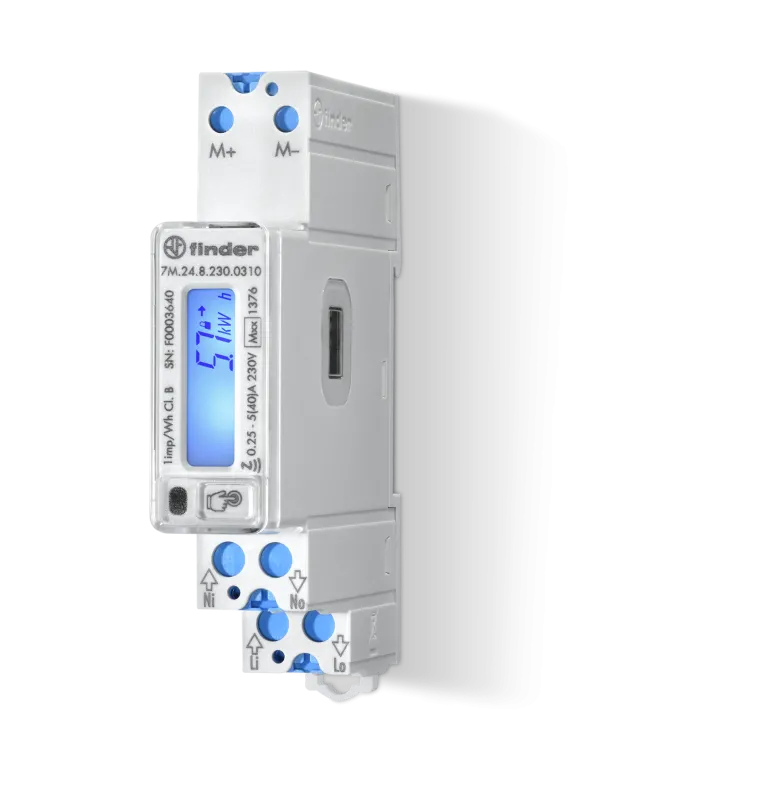

The single-phase bi-directional energy meters with LCD display, Types 7M.24.8.230.0001, 7M.24.8.230.0010, 7M.24.8.230.0210 and 7M.24.8.230.0310 are the ideal products for monitoring domestic/industrial energy consumption, including applications in offices, photovoltaic systems and energy metering within campsites.

The Type 7M.24 energy meters are programmable via smartphone thanks to NFC technology, which allows you to read the measured energy even in the absence of a network.

They are also distinguished by the touch-sensitive navigation and programming key and by the power/control terminals with integral sealable tamperproof terminal shield.

Other features:

• 4 MID certified counters for imported and exported active and reactive energy
• 8 resettable counters for active, reactive, absolute apparent, imported and exported energy
• Extensive real-time measurement capability: V, I, Pf, f, voltage and current THD and operating run-time for preventive maintenance activities
• Communication protocols M-bus and Modbus RS485

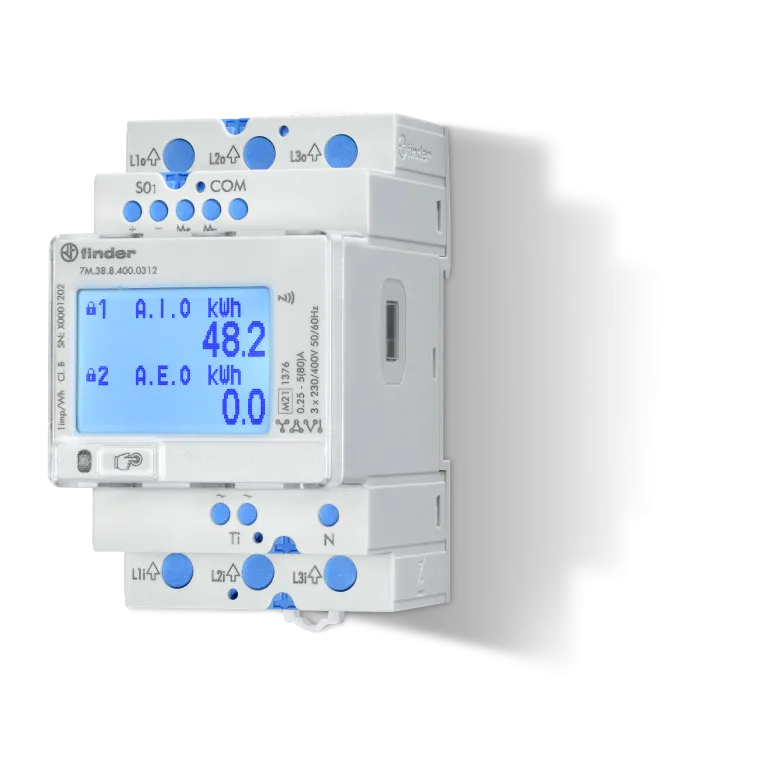

The 80A multi-function energy meters, Types 7M.38.8.400.0112, 7M.38.8.400.0212 and 7M.38.8.400.0312 are MID certified devices rated at 80 A, 70 °C and are for three-phase (3 or 4-wire) and single-phase systems. These meters are the ideal device for electric vehicle charging stations.

They are distinguished by the backlit matrix display, the multi-function touch key and the sealable tamperproof terminal shield.

They will display and store both total and partial (resettable) energy consumption, and display the following real-time values: V, A, PF, kW, kVA, kvar, Hz, THD V, THD A, phase angle and direction of power flow.

Type 7M.38 is available in the versions:

• 7M.38.8.400.0112 with double S0 pulse output for remote energy control and IR communication interface
• 7M.38.8.400.0212 with integrated Modbus RS485 and impulsive S0 communication port for remote energy control and IR communication interface
• 7M.38.8.400.0312 with integrated M-Bus and S0 impulsive communication port for remote energy control and IR communication interface

Other characteristics:

• Direct connection up to 80 A, double tariff, double S0 pulse output
• 2 MID certified meters for active energy + 2 for reactive energy (national certification), 16 resettable meters
• Active energy accuracy class: Class B according to EN 50470-3 (MID)
• Reactive energy accuracy class: Class 2 according to EN 62053-23
• Protection category II
