The 46 Series comprises industrial power relays with the following features (according to Type):

• DC coils, 500 mW or AC coils, 1.2 VA
• Socket mount or direct connection via Faston connectors
• Available with lockable test button, mechanical flag & LED indicator
• 8 mm, 6 kV (1.2/50 μs) isolation, coil-contacts

Finder’s 55 Series general purpose relay range includes the following features (according to Type):

• AC & DC coils
• PCB or Plug-in mounting
• Available with lockable test button, mechanical flag & LED indicator

Finder’s 56 Series power relays include the following features (according to Type):

• AC & DC coils
• PCB or Plug-in mounting
• Flange mount option (187 Faston termination)
• Available with lockable test button, mechanical flag & LED indicator

Accessories: 99 Series

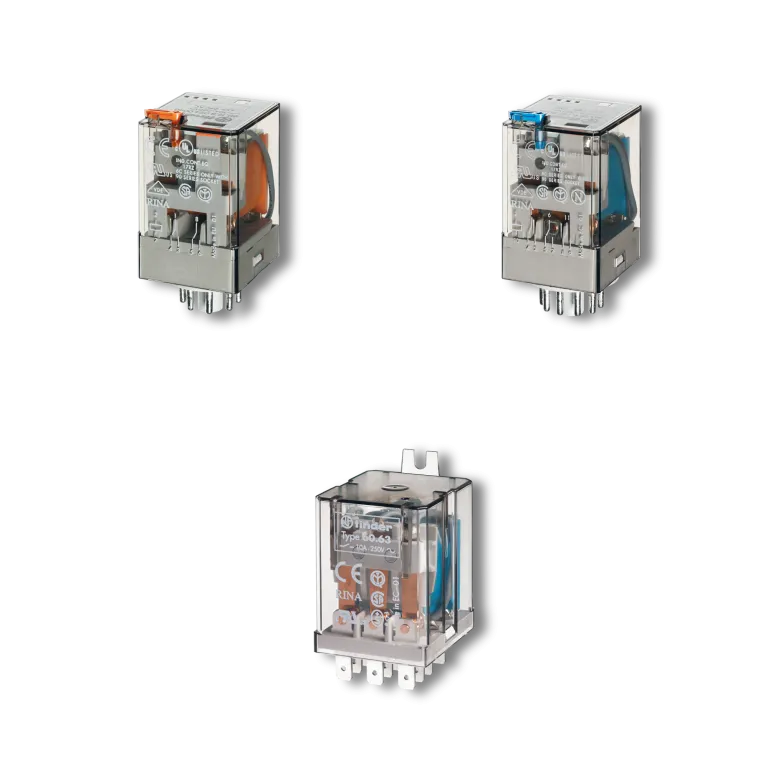

The 60 Finder Series comprises industrial relays which include the following features (according to Type):

• AC & DC coils, including “current sensing” versions
• 8 & 11 pin plug-in
• Flange mount
• Available with lockable test button, mechanical flag & LED indicator
• Version with bifurcated contacts for low level switching

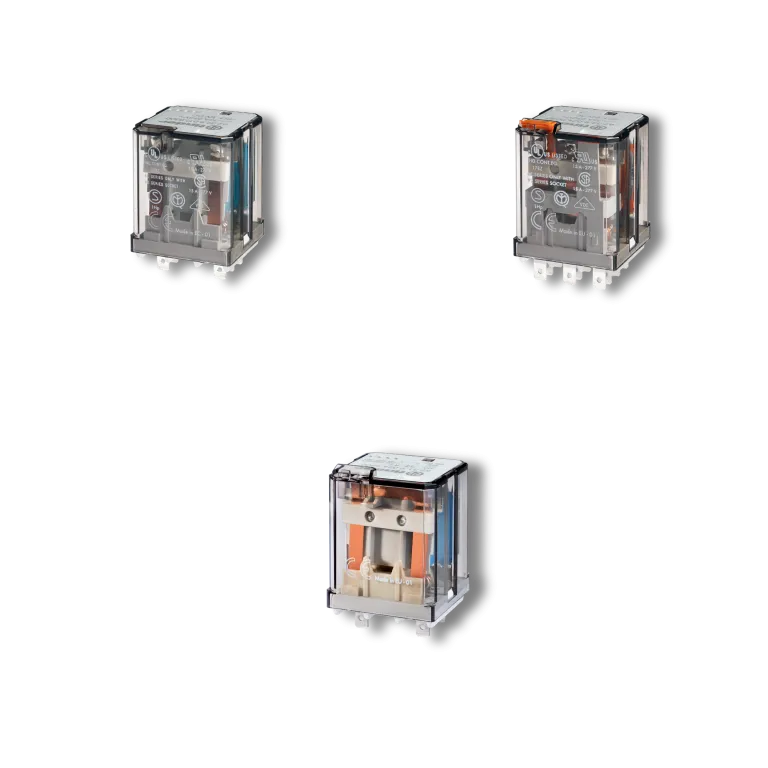

Finder’s 62 Series relays include the following features (according to Type):

• AC & DC coils
• Magnetic blow-out version
• PCB mount or Plug-in mount (187 Faston) or Flange mount (250 Faston)
• NO contacts option, > 3mm contact gap
• LED, mechanical indicator & test button options

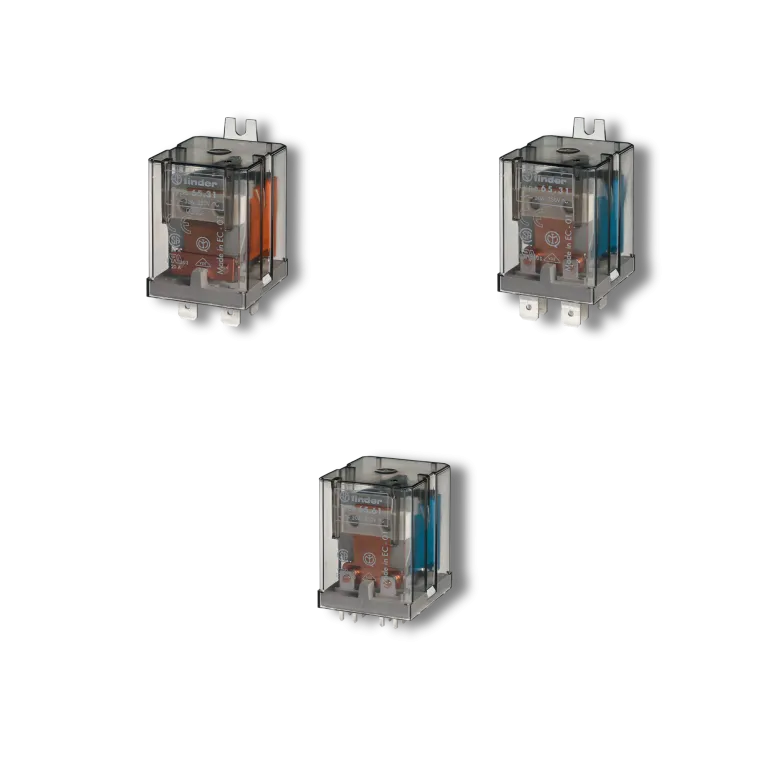

The 65 Series comprises power relays which include the following features (according to Type):

• AC & DC coils
• PCB mount or Flange mount (250 Faston)
• NO version, > 3 mm contact gap

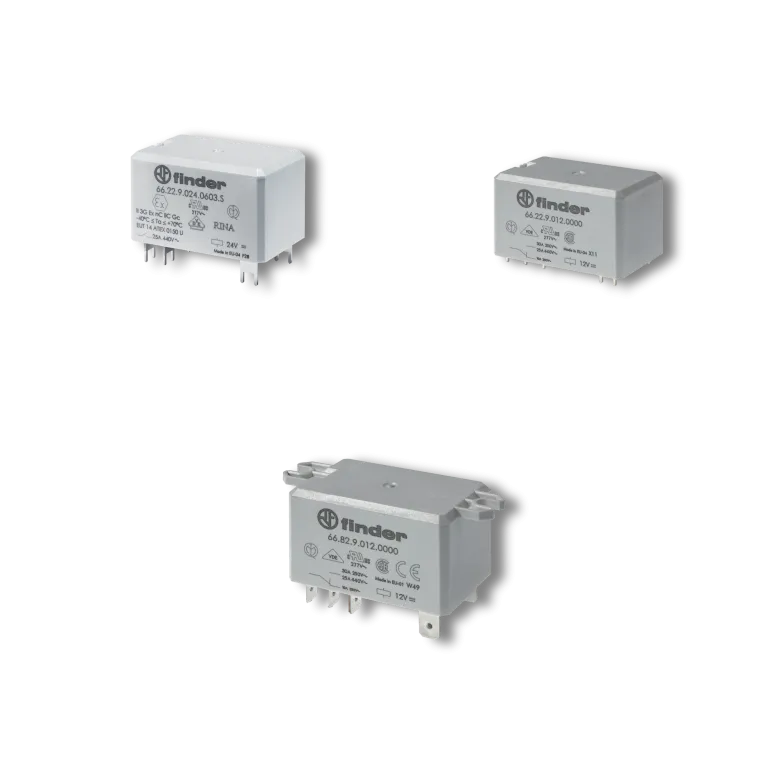

Finder’s 66 Series power relays include the following features (according to Type):

• AC & DC coils
• ATEX/HazLoc compliant (EX nC) option available
• PCB mount or Flange mount (250 Faston)
• 8mm, 6kV (1.2/50 μs) isolation, coil – contacts

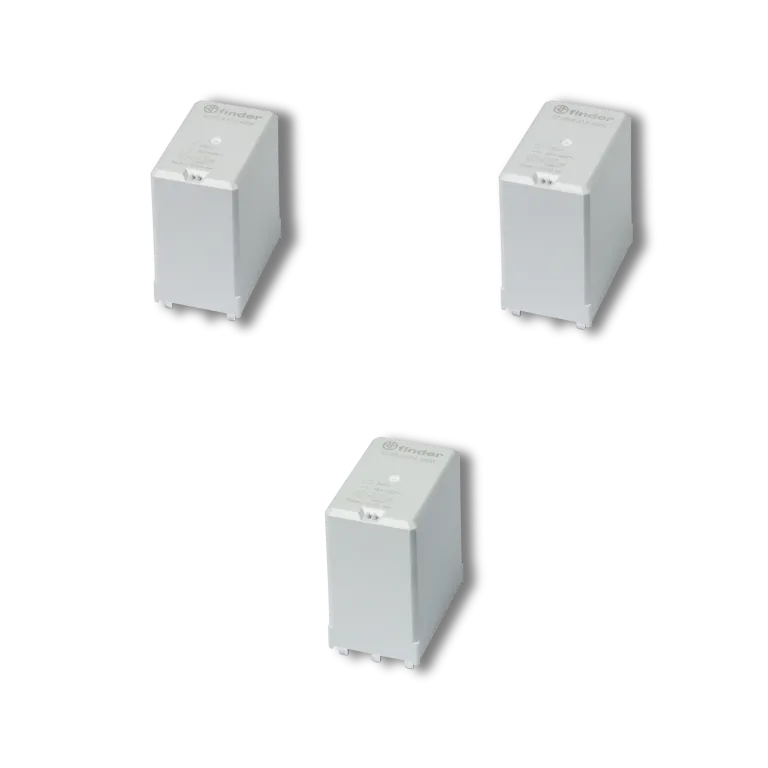

The 67 Series brings power relays for use in the photovoltaic sector. These devices include the following features (according to Type):

• DC coils, with only 170 mW holding power
• Contact gap ≥ 3 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• Reinforced insulation between coil and contacts
• 1.5 mm gap between PCB and relay base
• Suitable for use at ambient temperatures up to 85 °C (with energy-saving coil energization) or 70 °C (with standard coil energization)

The 68 Series includes the Type 68.22.9.xxx.4300 100 A PCB mount power relay, ideal for EV chargers up to 55 kW (3-phase) and other high power applications.

Technical features:

• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C).
• Cadmium-free contacts
