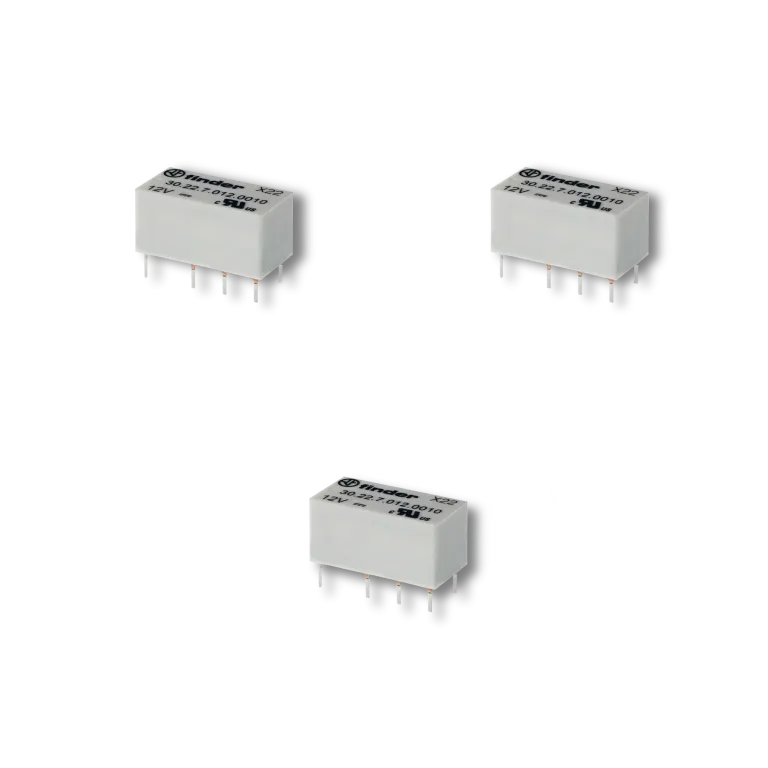

The 30 Series consists of a 2 A dual in line relay for PCB mounting with the following features (according to Type):

• 2 Pole changeover contacts
• Low level switching capability
• Subminiature: – industry standard DIL package
• Sensitive DC coil: 200 mW
• Wash tight: RT III

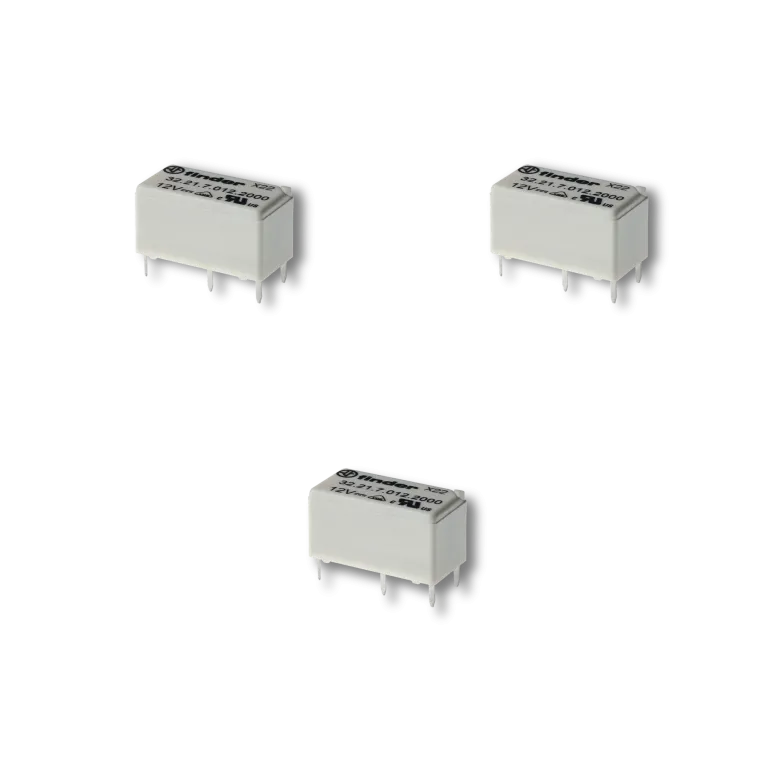

The 32 Series comprises miniature 6 A relays for printed circuit board mounting with the following features (according to Type):

• 1 Pole changeover contacts or 1 Pole normally open contact
• Subminiature, low profile package
• Sensitive DC coil: 200 mW – Wash tight: RT III

The 34 Series (EMR) relays include the following features (according to Type):

• Sensitive DC coil: 170 mW
• 5 mm wide – 6kV (1.2/50 μs) isolation, coil – contacts

The 34 Series (SSR) relays include the following features (according to Type):

• Sensitive DC input circuits
• 5 mm wide
• Silent, high speed switching with long electrical life

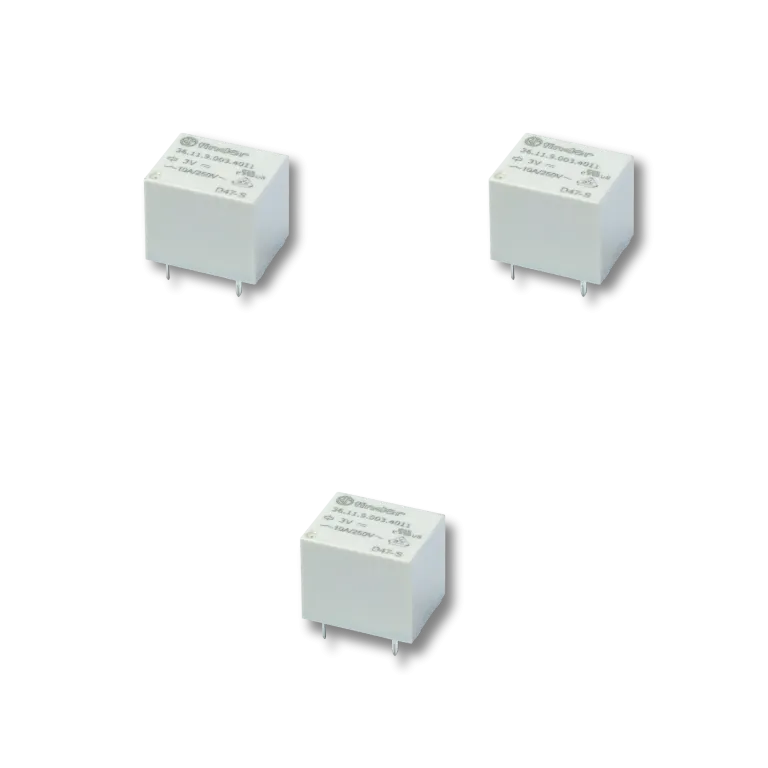

The 36 Series comprises a miniature relay suitable for PCB mounting including the following features (according to Type):

• 1 Pole changeover contact
• Miniature “Sugar Cube” package
• DC coil: 360 mW
• Wash tight: RT III

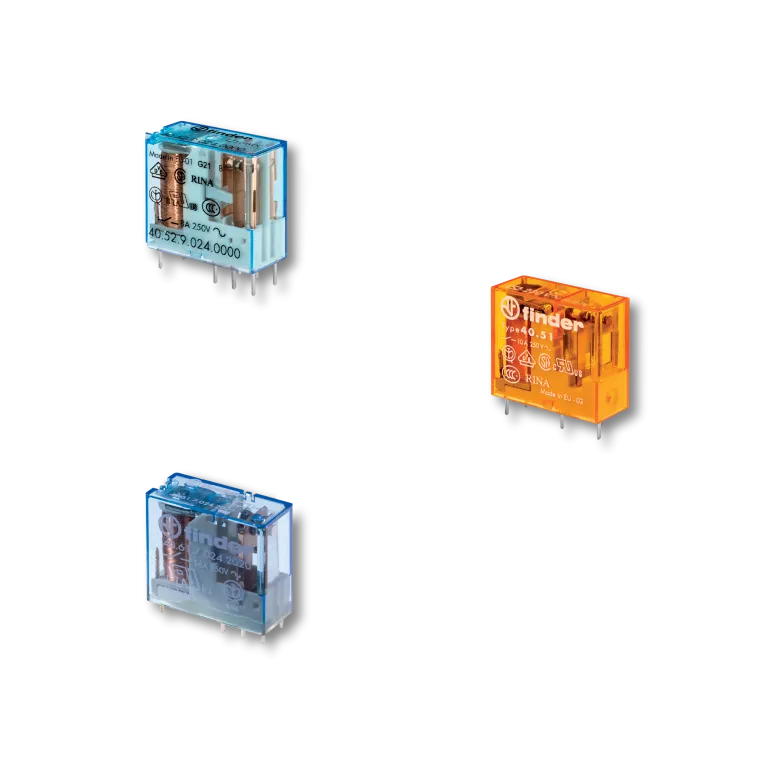

The 40 Series comprises relays which include the following features (according to Type):

• PCB/plug-in versions DC coils (standard or sensitive)
• 500 or 650 mW & AC 5.3 mm pin length 8 mm
• 6 kV (1.2/50 μs) isolation, coil – contacts

PCB version:

• DC coils, 500 or 650 mW
• 3.5 or 5.3 mm pin length
• 8 mm, 6 kV (1.2/50 μs) isolation, coil – contacts
• Flux proof: RT II standard (RT III version available)

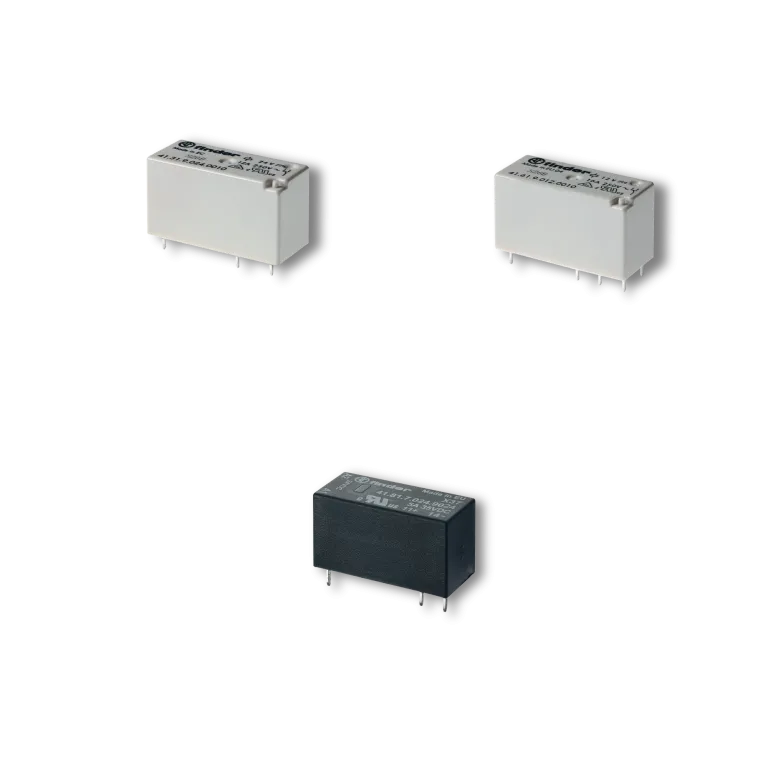

The 41 Series is a range of miniature low profile printed circuit board relays (height 15.7 mm). The different Types that make up this Series are:

EMR version

• Low profile, 15.7 mm height
• AC & DC coils
• 8 mm, 6 kV (1.2/50 μs) isolation, coil – contacts
• Flux proof: RT II standard, (RT III option)

Solid State (SSR) version

• Low profile, 15.7 mm height
• Sensitive DC input circuits
• Silent, high speed switching with long electrical life

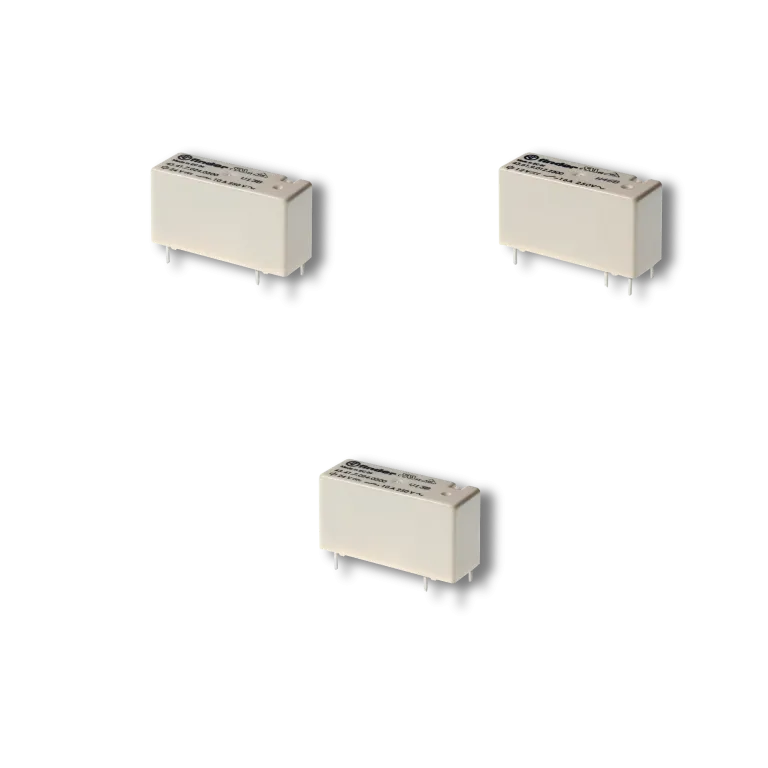

The 43 Series is a range of miniature PCB relays with the following features (according to Type):

• Low profile, 15.4 mm height
• Sensitive DC coils: 250 mW or 400 mW
• Very high coil contact isolation 10 mm, 6 kV (1.2/50 μs)
• Flux proof: RT II standard, (RT III option)
• 3.2 or 5 mm pin pitch

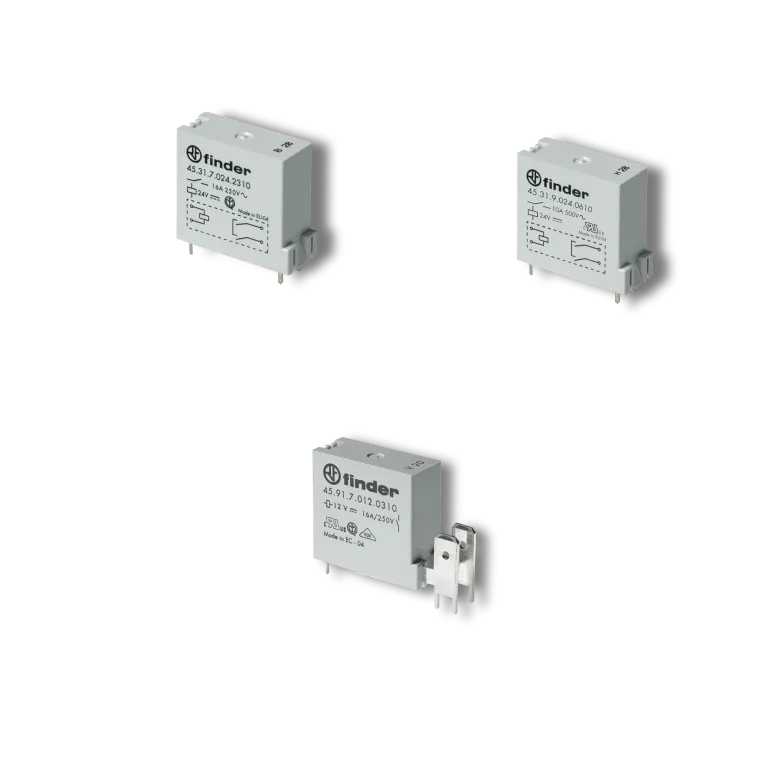

The 45 Series products are miniature PCB relays for high ambient temperature + 105 °C / + 125 °C with the following features (according to Type):

• Sensitive DC coil: 360mW
• Relay for +125°C ambient use
• Contact gap ≥ 3mm according to EN 60730-1
• 8mm, 6kV (1.2/50 μs) isolation, coil – contacts
• PCB mounting + 250 Faston

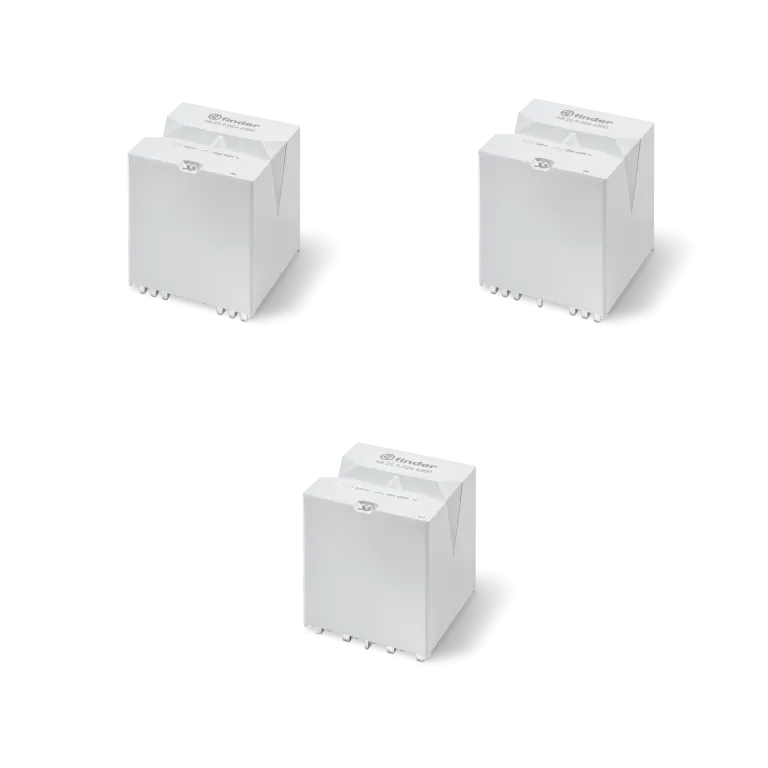

The 68 Series includes the Type 68.22.9.xxx.4300 100 A PCB mount power relay, ideal for EV chargers up to 55 kW (3-phase) and other high power applications.

Technical features:

• Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)
• DC coils, with 700 mW holding power
• Reinforced insulation between coil and contacts
• Suitable for use at ambient temperatures up to 85 °C
• Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C).
• Cadmium-free contacts
