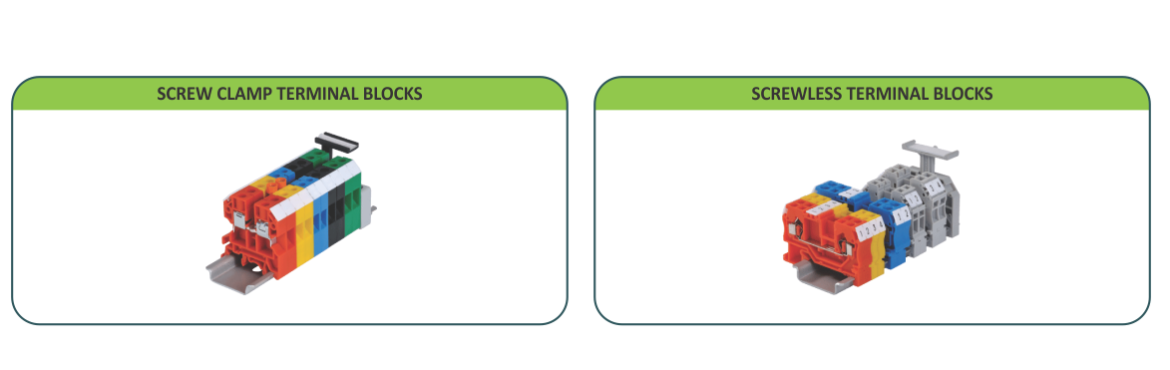

elmex wide range of Terminal Blocks for conductor size ranging from 2.5 to 95 mm² are tested and approved for 1000V DC / 1500V DC and are suitable for use in Solar Photovoltaic Systems. Electrical ratings of these terminal blocks are given below. These terminal blocks have conductor termination by screw-clamp technology or by screwless (spring clamp technology)
|
Description |
Specifications |
|
KUT 2.5N |
1000V DC/24 A/2.5 mm²/0.5 Nm |
|
KUT 4N |
1000V DC/32 A/4 mm²/0.6 Nm |
|
KUT 6N |
1000V DC/41 A/6 mm²/0.8 Nm |
|
KUT 10N |
1000V DC/63 A/10 mm²/1.2 Nm |
|
KUT 25 |
1000V DC/101 A/25 mm²/2.3 Nm |
|
KUT35 |
1000V DC/125 A/35 mm²/3 Nm |
|
KUT 50 |
1000V DC/150 A/50 mm²/8 Nm |
|
KUT 95 |
1000V DC/232 A/95 mm²/20 Nm |
|
DST 2.5 |
1000V DC/24 A/2.5 mm² |
|
DST 2.5 1x2 |
1000V DC/24 A/2.5 mm² |
|
DST 4 |
1000V DC/32 A/4 mm² |
|
DST 6 |
1000V DC/41 A/6 mm² |
|
DST 10 |
1000V DC/57 A/10 mm² |
|
DST 16 |
1000V DC/76 A/16 mm² |
|
SCT 2.5 |
1000V DC/24 A/2.5 mm² |
|
SCT 4 |
1000V DC/32 A/4 mm² |
|
MCT 2.5 |
1000V DC/24 A/2.5 mm² |
|
MCT 2.5P4 |
1000V DC/24 A/2.5 mm² |
|
MCT 4 |
1000V DC/32 A/4 mm² |
|
DCT 2.5 1x2 |
1000V DC/24 A/2.5 mm² |
|
DCT 2.5 2x2 |
1000V DC/24 A/2.5 mm² |
