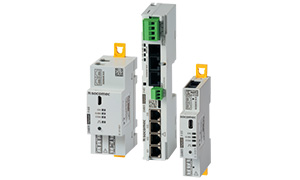

DIRIS Digiware Iac modules measure consumption and monitor the system at the closest point to the loads. The flexibility of these modules allows you to allocate the loads to be measured or monitored through independent current inputs.
For example:
With the DIRIS Digiware D-70 display, data can be visualised on WEBVIEW-M, the "Power & Energy monitoring" embedded web server. DIRIS Digiware displays are 24 VDC powered.
DIRIS Digiware Iac modules measure consumption and monitor the system at the closest point to the loads. The flexibility of these modules allows you to allocate the loads to be measured or monitored through independent current inputs.
The DIRIS Digiware C-31 interface is supplied with 24 VDC.

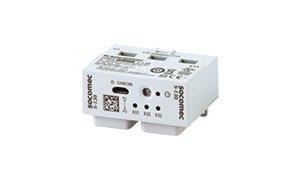

DIRIS Digiware S current acquisition modules have 3 integrated current sensors for the measurement of electrical circuits up to 63 A.
Positioned directly above or below the protective devices, they are associated with the DIRIS Digiware U voltage measurement module to measure consumption, and to monitor the electrical installation and the quality of the power supply.

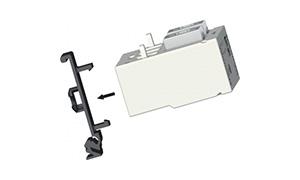

Mounting accessories for DIRIS Digiware S current acquisition modules

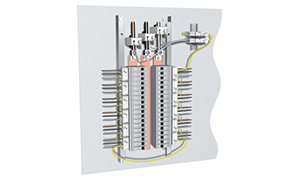

DIRIS Digiware branch-circuit power monitoring kits are compatible with all PDU (Power Distribution Unit)/RPP (Remote Power Panel) configurations: 36, 42, 48, 72 or 84 outgoing circuits, with or without the main feed.
DIRIS Digiware R-60 modules combine residual current monitoring (RCM) with power metering and monitoring functions, for any combination of 1-phase, 2-phase or 3-phase circuits used in TN-S and TT earthing systems.
With six RJ 12 channels, they can be connected to a mix of ΔIC residual CTs and TE/TR/iTR/TF current sensors via RJ12 cables enabling quick connection and avoiding wiring errors.
The DIRIS Digiware T-10 RJ12 adaptor ensures the connection of the residual CT to the DIRIS Digiware R-60 module via an RJ12 cable, available in multiple lengths.
