DIRIS Digiware IO

DIRIS Digiware D

DIGITAL AND ANALOGUE INPUT/OUTPUT MODULES - FOR THE DIRIS DIGIWARE SYSTEM

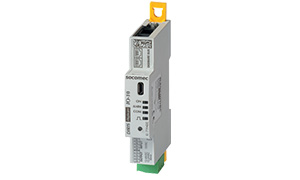

DIRIS Digiware IO modules enrich the measurement system with multiple features:

• DIRIS Digiware IO-10 modules have 4 digital inputs and 2 digital outputs.

The 4 digital inputs can be used to monitor the status of third-party devices (position of protective devices, trip counter) or to collect pulses from multi-fluid meters.

The 2 digital outputs allow to remote control of third-party equipment signal. Alarms can be configured and assigned to the digital outputs.

Thanks to their 2 analogue inputs, DIRIS Digiware IO-20 modules can collect data from analogue sensors (pressure, humidity, temperature...).

All the information reported by the IO-10 and IO-20 modules can be viewed on DIRIS Digiware D-xx displays and on Webview, the web server embedded in DIRIS G gateways and in the DIRIS Didiware D-70 display unit.
